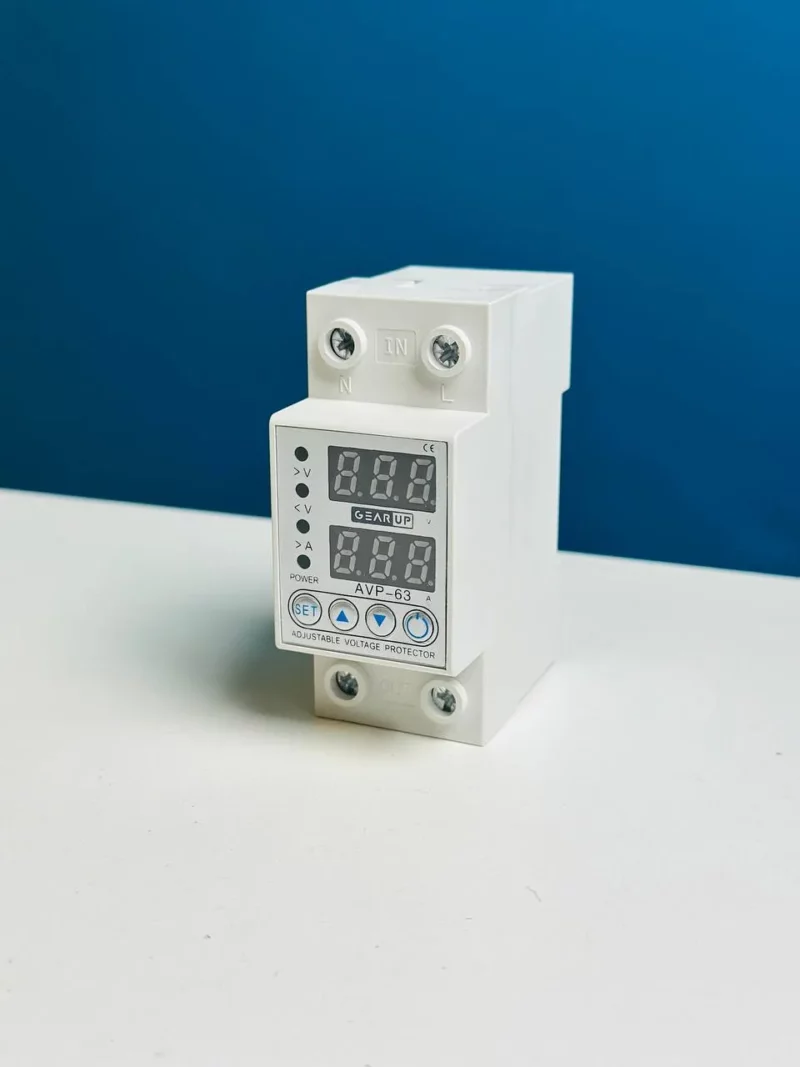

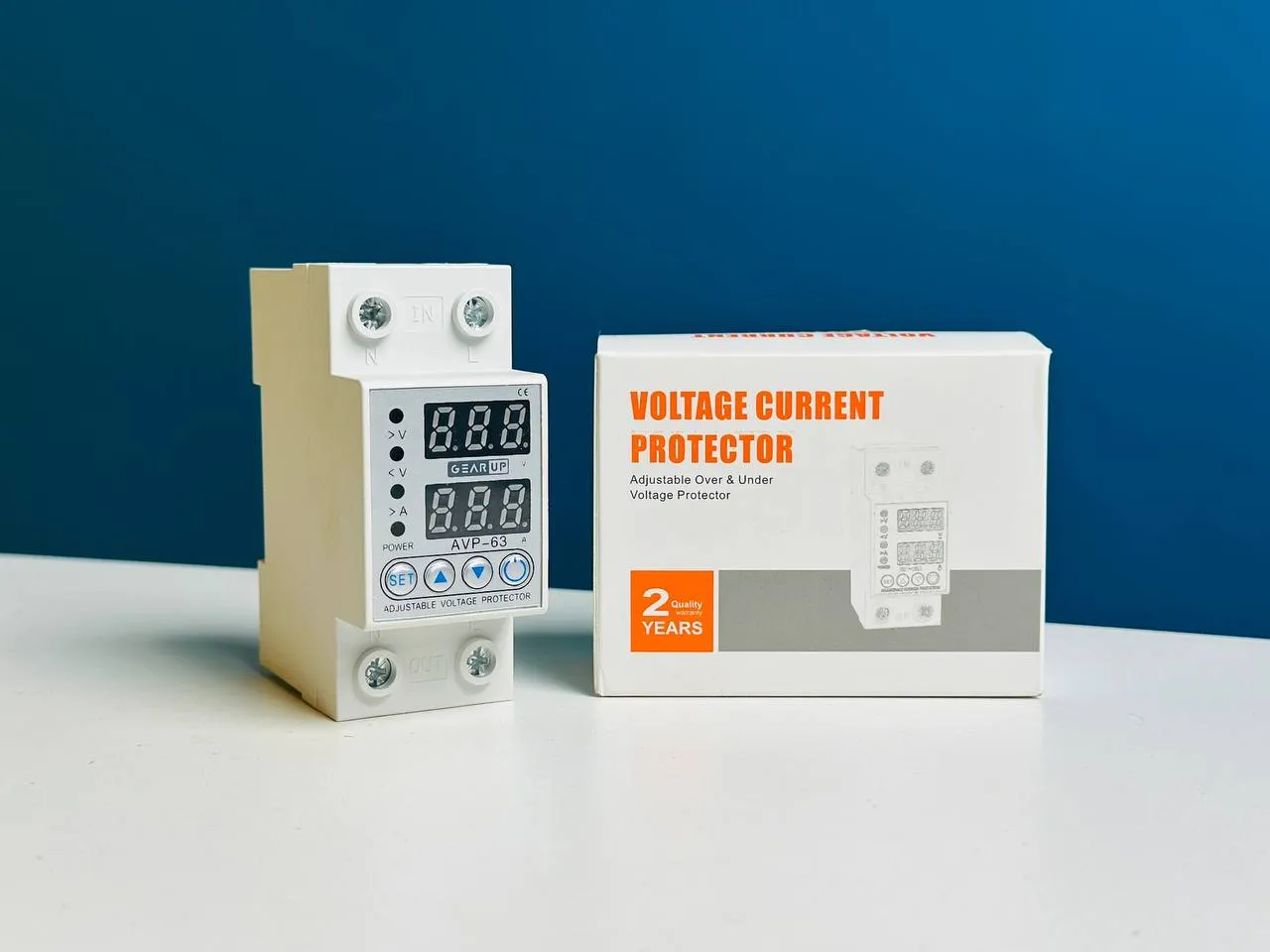

GearUP AVP-63 Automatic Voltage Protector-220V Price in Bangladesh
Key Functions
- Protection Features
- Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).
- Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).
- Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).
- Automatic Recovery: Restores power after fault conditions (adjustable via P-15).
- Fast Power-Down: Emergency cutoff (enabled via P-14).
- Monitoring & Display
- Real-time voltage display (AC/DC).
- Real-time current display (AC only; DC mode shows voltage only).
- Indicators for faults (>V, <V, >A) and normal operation (POWER).
- Programmable Settings
- Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
- Password protection (P-17) to prevent unauthorized changes.
| Category | Details |
|---|---|
| Power Supply | AC: 320V / DC: 80–300V |
| Frequency | 50/60Hz (AC only) |
| Voltage Range | AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating) |
| Max Current | 40A/63A (configurable) |
| Accuracy | Voltage: <1% |
| Response Time | Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10) |
| Environmental | -25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C) |
| Physical | 512 × 960mm, 15kg |
Setup & Operation Guide
A. Initial Configuration

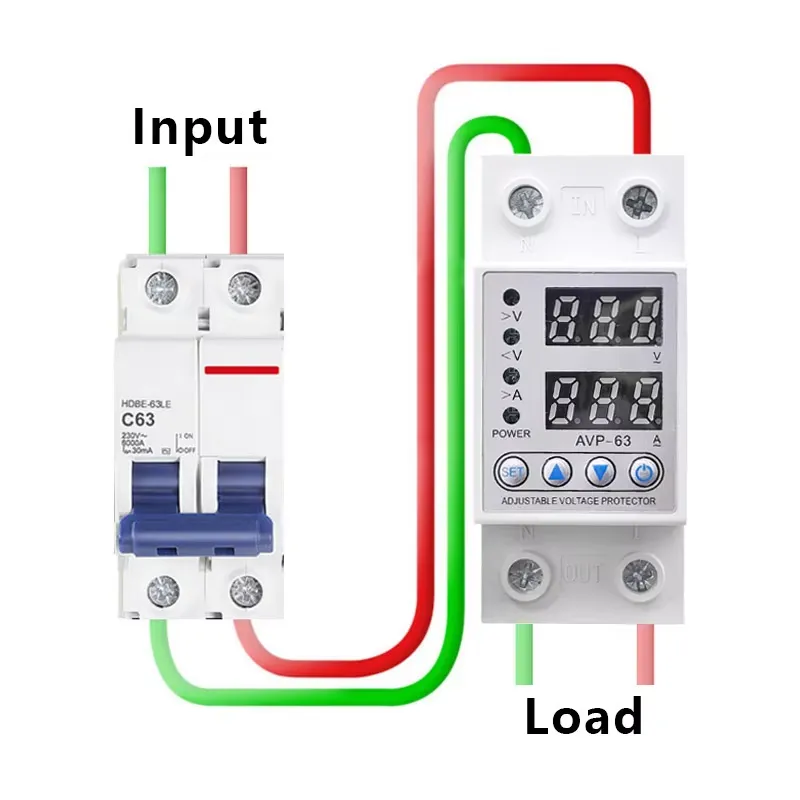

- Power Connection:
- Wire terminals (N-L) to AC/DC source within rated limits.
- Menu Navigation:
- Use front-panel buttons to adjust parameters (P-1 to P-17).
B. Critical Settings
| Parameter | Purpose | Default | Range |
|---|---|---|---|
| P-3/P-5 | Over/under-voltage thresholds | 300V/80V | AC: 80–300V / DC: 130–300V |
| P-9 | Max current limit | 63A | 14–63A |
| P-15 | Auto-recovery after fault | ON | ON/OFF |
| P-17 | Password lock | 000 | 000–999 |
C. Calibration
- Voltage: Adjust via P-8 (±10%).
- Current: Calibrate with P-12 (±10%).
- Frequency (AC only): Fine-tune with P-13 (±2.5%).
D. Safety & Recovery
- Manual Reset: Required if auto-recovery (P-15) is disabled.
- Event Logging: Overcurrent counts (P-11) track fault history.
Usage Notes
- DC Mode: Current display disabled; only voltage monitored.
- Energy Saving: Enable P-16 to reduce idle power consumption.
- Altitude Warning: Performance may degrade above 2000m.
The GearUP AVP-63 is an automatic voltage protector designed for 220V systems. This device ensures the safety and stability of electrical equipment by regulating voltage levels, thereby preventing damage caused by fluctuations. Its reliable performance makes it an essential component for maintaining the integrity of sensitive electronic devices in various settings.
